A Look into the Making of Topographic Maps

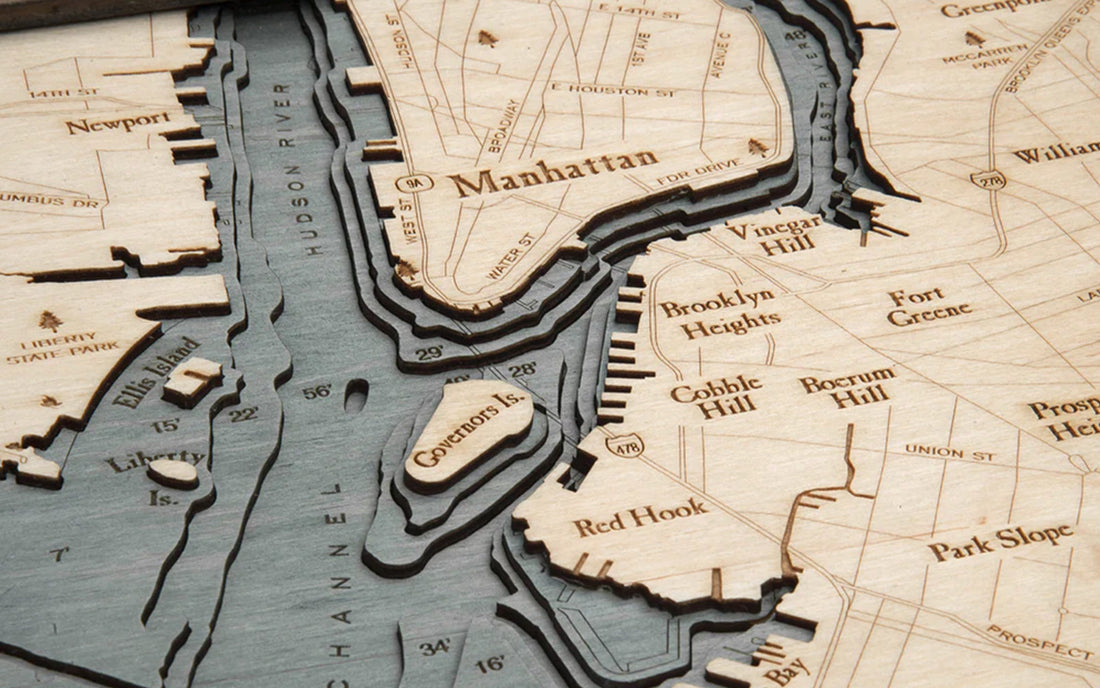

Hold a Woodchart up to the light and you can read the whole coastline in its edges: each layer of birch is a real depth, stacked to build the true shape of the water. That physical relief starts as a science called topography, and the path from a survey reading to a finished piece on your wall runs through a few centuries of clever people trying to describe a lumpy planet on a flat page. Here is how topographic maps are made, and how we turn that old craft into something you can hang.

What topography actually means

Topography is the study of the shape of the land: the rise of a ridge, the drop of a valley, the slow slope down to a lakeshore. A topographic map records that shape, showing elevation and terrain rather than just roads and borders. The same idea underwater is called bathymetry, which measures depth instead of height. A wood chart of a lake or harbor is really a bathymetric map, every sounding turned into a step of birch.

The reason this matters beyond the wall is that elevation drives almost everything. Architects need it before they pour a foundation. Geologists and ecologists read it to understand soil, watersheds, and where plants and animals live. Hikers and climbers trust it to know whether the next mile is a stroll or a scramble. Long before any of that, sailors needed to know where the seabed rose up to meet a hull. Getting the shape of the ground right has always been worth real effort.

How elevation gets measured

The hard part of a topographic map is not the drawing. It is knowing, precisely, how high or how deep every point is. Mapmakers have chased that number with better and better tools.

The earliest field method leaned on the aneroid barometer, which reads air pressure. Pressure falls in a predictable way as you climb, so a careful surveyor could translate a needle into an altitude. Ground surveying refined it, teams working across the land with instruments and a lot of trigonometry to fix exact positions. Then came the view from above. Aerial photography and photogrammetry let cartographers pull elevation from overlapping photos taken from aircraft, and modern airborne LIDAR pushed it further, firing hundreds of thousands of laser pulses per second at the ground and timing the return to build a dense, exact model of the surface. On the water, bathymetric charts come from sonar soundings, boats mapping the bottom depth by depth. In the United States, the USGS has been stitching these methods into its topographic quadrangle maps for well over a century.

Reading a topographic map

Once the measurements exist, they get drawn as contour lines. A contour line connects points of equal elevation, so a single line traces one exact height all the way around a hill. The trick is in the spacing. Lines packed tightly together mean the ground rises fast, a cliff or a steep grade. Lines spread far apart mean a gentle slope. Read the spacing and you can feel the terrain without ever seeing it.

Cartographers follow a handful of rules so any reader can trust the drawing:

• Every point on one contour line sits at the same elevation.
• Contour lines never cross and never split apart.
• Every fifth line, the index contour, is drawn heavier and labeled with its elevation.
• Small tick marks called hachures point inward to show a depression, a spot where the land dips down.
• A scale in the legend fixes the horizontal distance, and the contour interval fixes the vertical.

Beyond the lines, mapmakers add shading and relief to hint at how the light would fall across the real ground. It turns a page of numbers into something you can picture.

From flat lines to real depth

Here is the honest limitation of a paper topographic map: it describes a three-dimensional world in two dimensions and asks your imagination to do the rest. Not every topographic map is 3D. Most are perfectly flat, using contour lines alone to stand in for elevation. A 3D map removes the guesswork by rebuilding the terrain as an object you can actually see and touch.

That is the whole idea behind a wood chart, and it is an old one. Relief maps, physical models of terrain, have existed for centuries. What changed is precision. A Woodchart takes each contour and makes it a real, cut layer, so the shape you would otherwise have to imagine is sitting right there in birch.

How we make a Woodchart

Our process starts exactly where a cartographer's does, with the data. For a coastal or lake piece, our artists pull the depth readings from a bathymetric chart of the location. Those measurements feed a wood laser, which cuts each elevation layer from birch, one contour at a time. It is the same logic as the index lines on a paper map, except each line becomes a physical step.

Then the hands take over. Every layer is stacked and glued by hand, building the relief from the deepest water up to the shore. The water is hand-stained in a rich blue-green so the channels and basins read at a glance, and the meaningful details, the landmarks, harbors, and main roads, are laser-engraved into the surface. The finished piece goes behind acrylic and into a frame you choose. What you end up with is the survey data of a real place, rendered as a small sculpture of the ground itself.

Wood is our material of choice for the way birch takes an edge and lasts. Others in the model-making world reach for foam, plastic, metal, or 3D printers, and each has its use. We keep coming back to birch because it holds fine detail, ages well, and looks like something worth keeping. If you want the deeper version of this walkthrough, we wrote a whole piece on how our 3D wood maps are made.

Where the science ends up

The best part of topography is that it does not have to stay in a lab. The same contour data that guides a survey crew becomes wall art, a wall clock, a cribbage board, or a serving tray, each one a real map of a place that means something to the person who owns it.

A large chart of the Great Lakes anchors an entryway. A topographic wall clock turns a plain office wall into a favorite coastline. A cribbage board of your home lake plays a game and hangs like a map when the cards are away. Every contour curve doubles as a built-in geography lesson and a conversation starter, and there are plenty of good reasons to live with one.

The tradition, made real

Every Woodchart is topography you can hold: centuries of measurement, from the barometer to the LIDAR pulse, distilled into the true shape of a place you love. If you want to see where that long craft lands today, explore the full collection of wood charts and find the water you know best.
